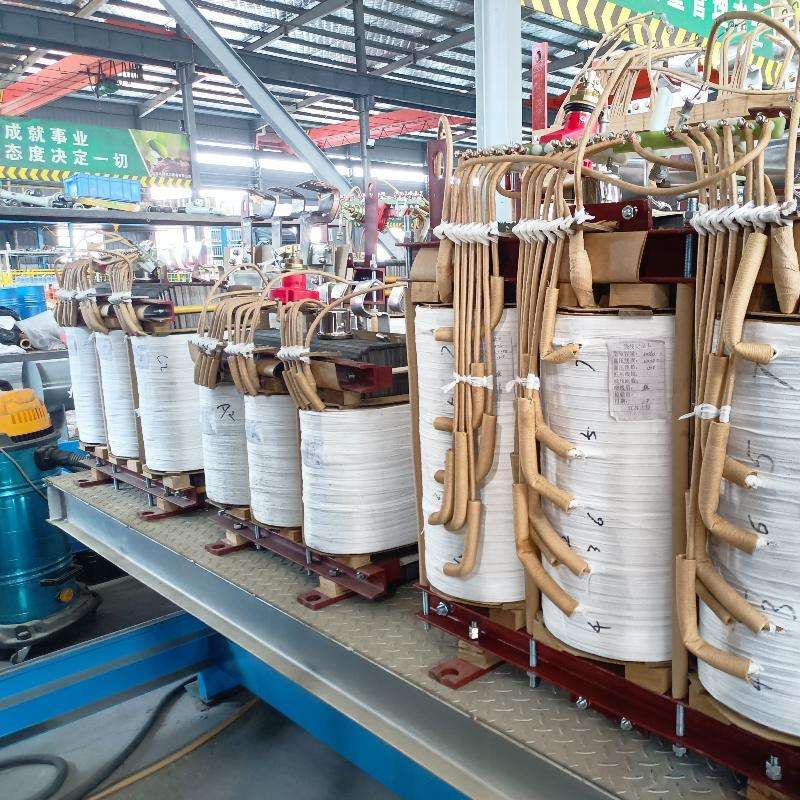

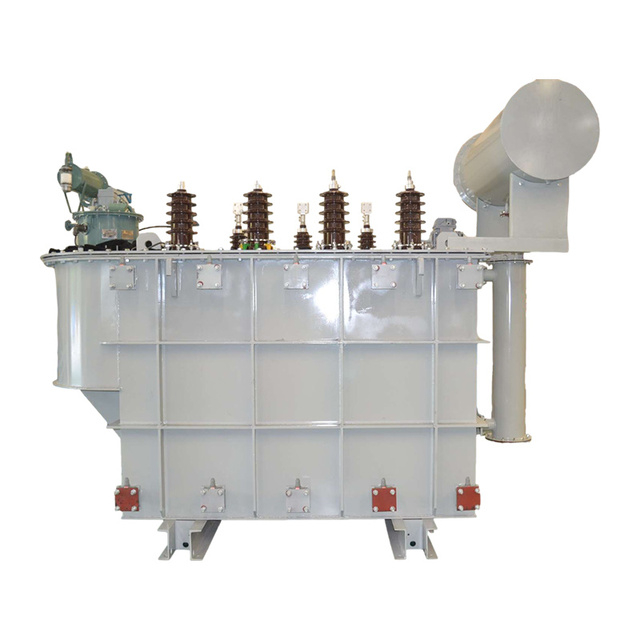

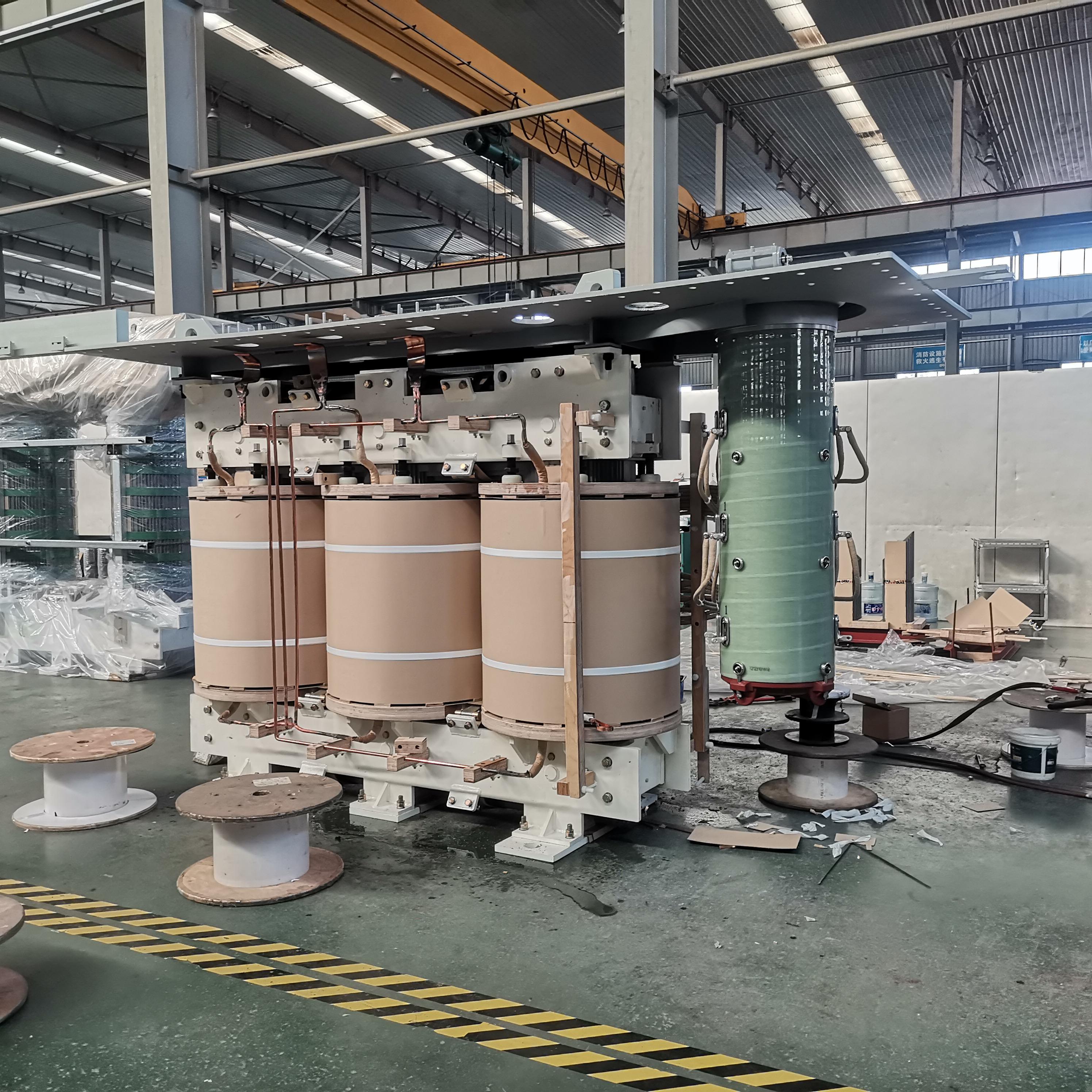

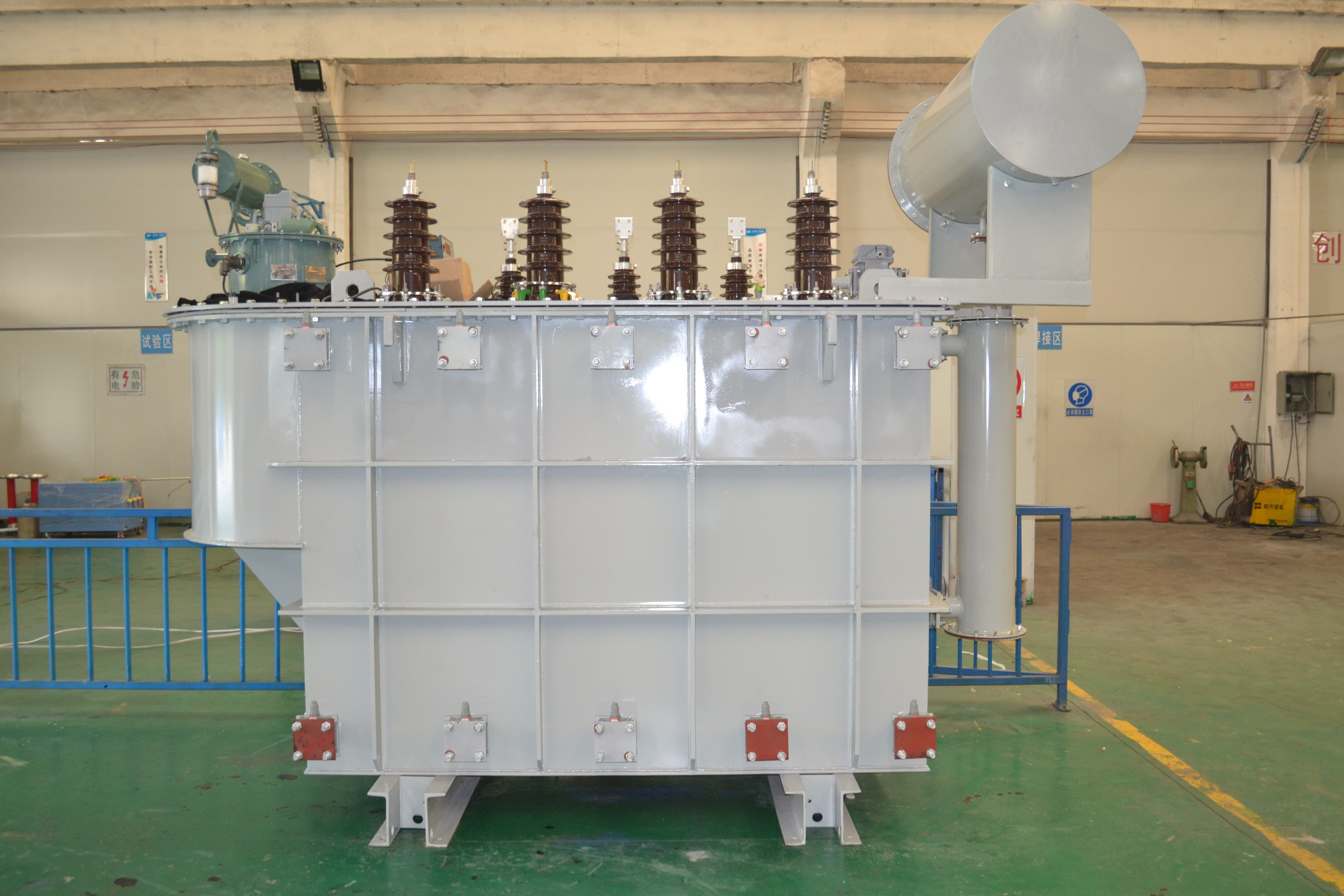

Side Outlet Oil-immersed Transformer

ZS series rectifier transformer

The ZS series rectifier transformer is used for power supply of rectifying devices, most industrial DC power sources is transformed from an AC network via rectifying devices consisting of a rectiformer and a rectify. It is widely used in the electrolysis, electrochemical, transmission, traction, static de-dusting, DC transmission, frequency conversion and other system provides DC power. Model ZSG, ZSC are dry type, model ZSF is split oil immersed type. For connection, connect the transformer’s line side to AC power, and connect the value side to inverter, DC device or thyristor converter.

Quantity:
Availability:





Inquire Add to Basket

Model:
ZS series rectifier transformer
Brand:
Qianhong/Custom

Oil Immersed Transformer Step up Transformer Power Transformer 3 Phase Step Down Transformer Manufacture Oil immersed power Transformer high power transformer 3 phase distribution transformer 350kva (33kv/0.4kv) industrial power transformer toroidal power transformer

Product Description

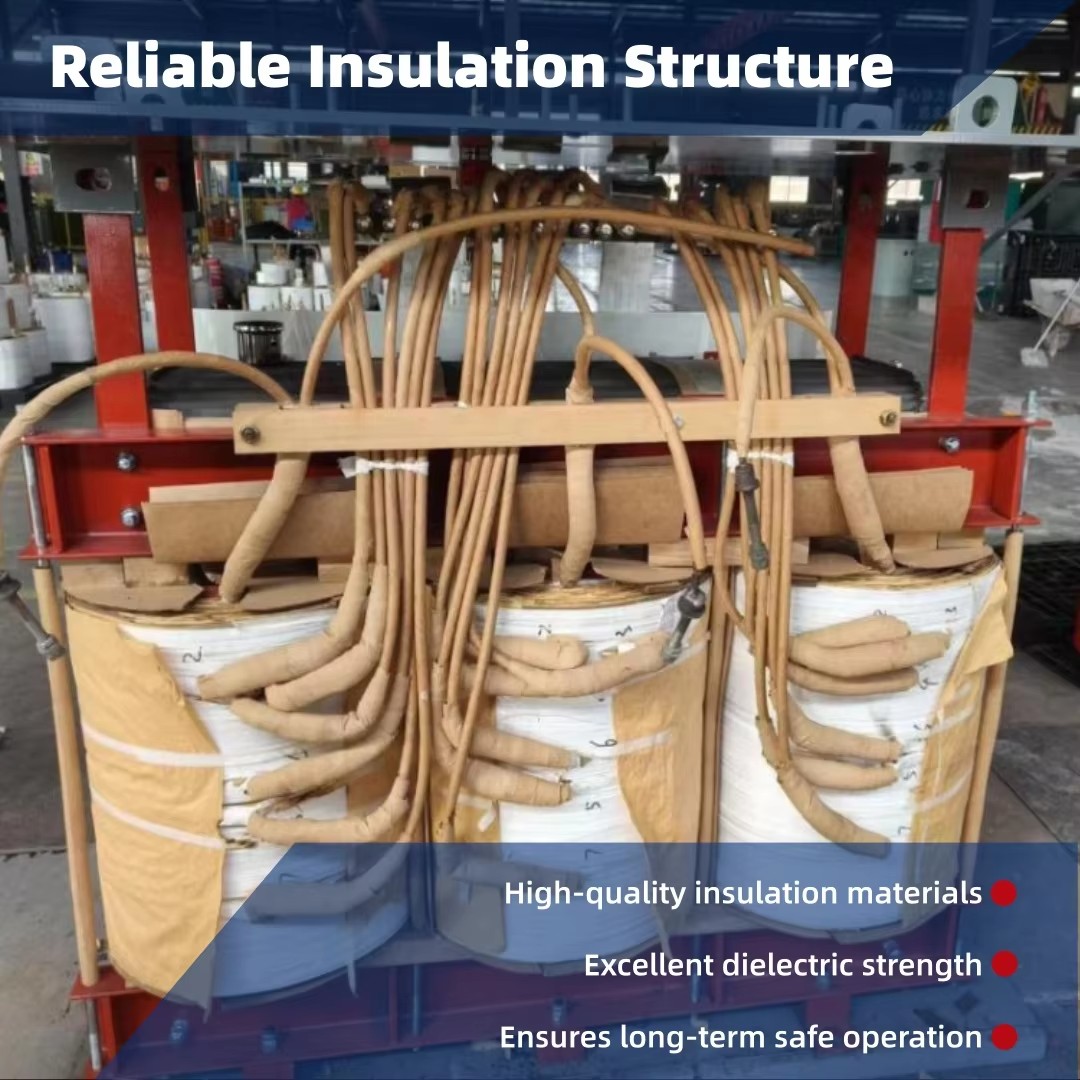

Features
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability
6) Operation reliability
7) Easy maintenance
8) Pretty outline and compact structure
9) 100% guaranteed no leakage

Technical parameters

Model	Rated Capacity	Rated Voltage		Connection	Weight			Gauge (Crosswise *Lengthways)	Dimension (LWH)
	Rated Capacity	Line side	Value side	Connection	Untanking mass	Insulating oil weight	Gross	Gauge (Crosswise *Lengthways)	Dimension (LWH)
	(kVA)	(kV)	(kV)		(kg)	(kg)	(kg)	(mm)	(mm)
ZS-30/6.3	30	6300	68	Yd11	135	78	300	400*400	800496915
ZS-40/6.3	40	6300	90	Yd11	170	100	360	400*400	790658955
ZS-63/6.3	63	6300	137	Yd11	240	120	465	550*550	8506801050
ZSF-100/10	100	10000	2*400	Yd11y0	320	150	590	550*550	9107001080
ZS-200/10	200	10000	400	Dy11	580	180	960	550*550	17806801360
ZS-315/10	315	10000	380	Yd11	870	310	1560	660*660	170010801550
ZS-400/10	400	10000	230	Dy11	910	460	1860	660*660	168011701700
ZS-500/10	500	10000	420	Dy11	1040	430	1940	660*660	154011351690
ZSF-560/10.5	560	10500	2*420	Dd0y11	1485	600	2510	820*820	208012001780
ZS-630/6	630	6000	440	Dy11	1380	560	2610	820*820	190012101850
ZS-800/10	800	10000	380	Dy11	1550	570	2780	820*820	196013301923
ZS-1000/10	1000	10000	660	Dy11	1800	660	3100	820*820	198013551975
ZS-1300/6.3	1300	6300	650	Dd0	2100	685	3600	820*820	233011701350
ZS-1400/6	1400	6000	400	Dy11	2180	780	4050	820*820	210013201750
ZS-1600/6	1600	6000	400	Dy11	2560	870	4410	820*820	218515202010
ZS-2000/10	2000	10000	760	Dy11	3280	1210	6400	1070*1070	287016002400
ZS-2500/10	2500	10000	600	Dd0	3400	1410	5170	1070*1070	243016602700
ZSF-4000/6	4000	6000	2*740	Dd0y11	5100	2050	10100	1070*1070	300027802895
ZSF-4400/10	4400	10000	2*770	Dd0y11	5800	2950	12690	1070*1070	320031003200
ZSF-5600/10	5600	10000	2*2800	Dd0y11	7200	3020	13770	1475*1475	338029703300
ZSF-7200/35	7200	35000	2*1100	Dd0d0	10900	3800	18900	1475*1475	362032953260
ZS-9500/10	9500	10000	117√3	DY-人Y-人	9500	5500	22870	1475*1475	417029503730
