Application
With advanced structure and performance, this series transformer can sustain large load fluctuation and over-load, it has high anti-flaming level and can adapt to the high humidity, dusty and other harsh environment. It is widely used in airport, power station, metallurgy industry, hospital, high-rise buildings, shopping center, heavily populated region, petrochemical industry, nuclear power station and nuclear submarine, etc.
Technical specification
Rated High Voltage: 10KV
Rated Low Voltage: 0.4KV
Insulation grade: H
Connection: Dyn11 or Yyn0
Insulation level: LI75AC35/AC5
Benefits:
1.H-Grade Insulation

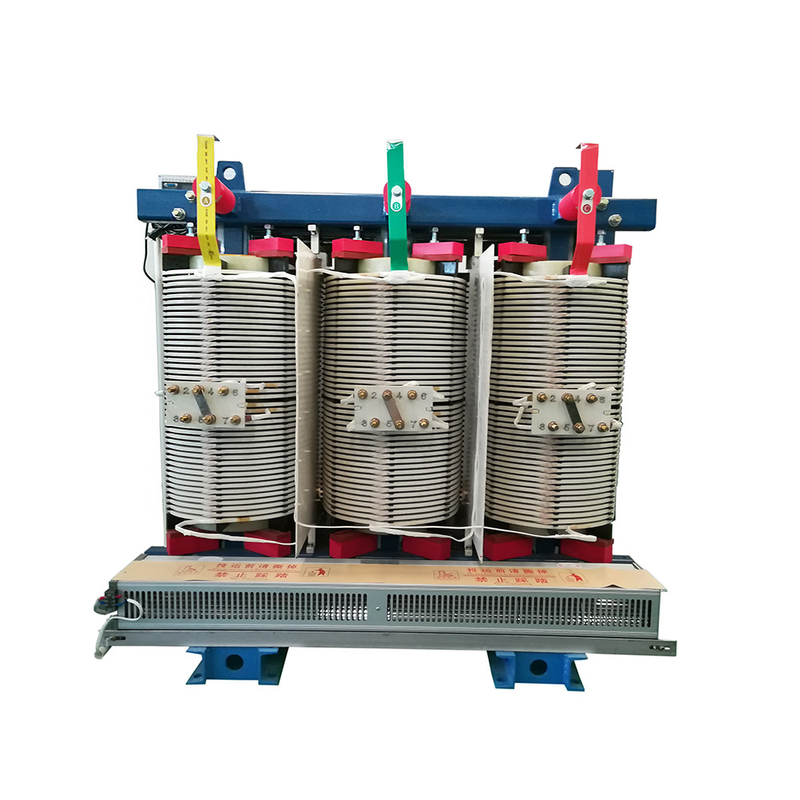

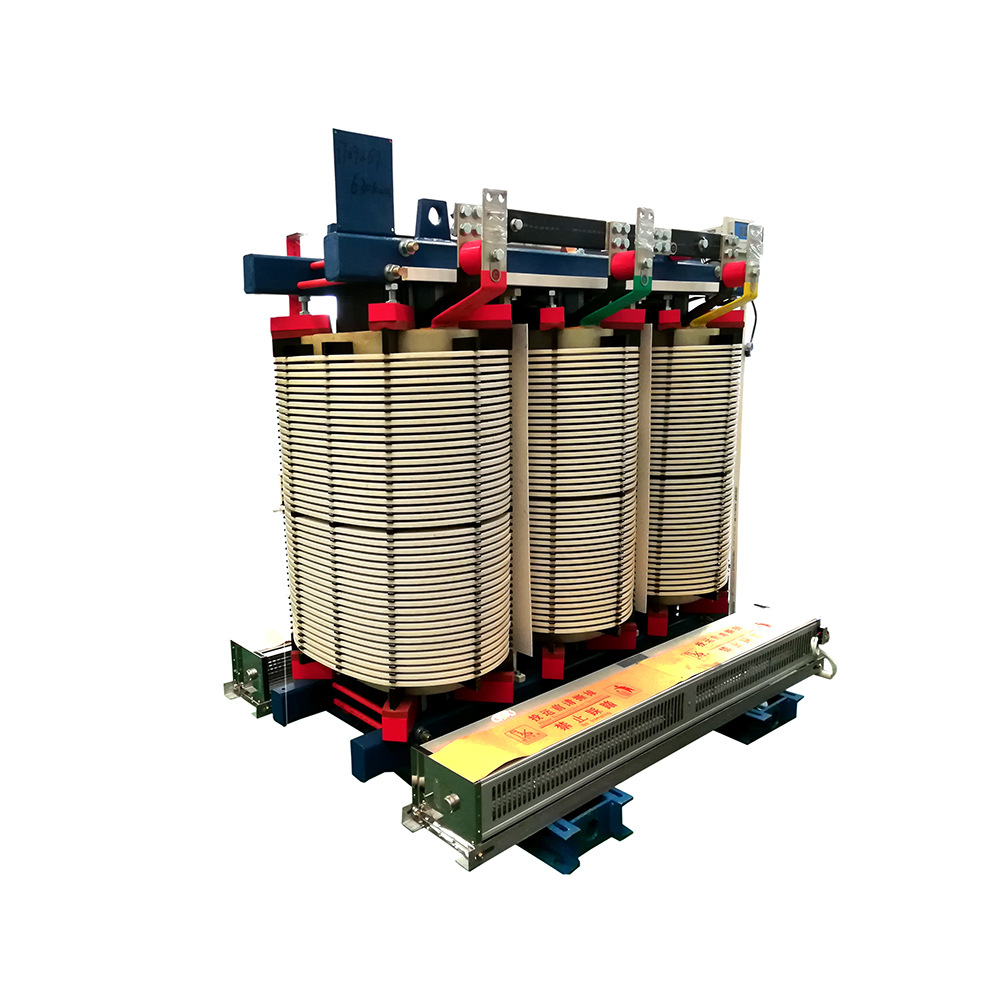

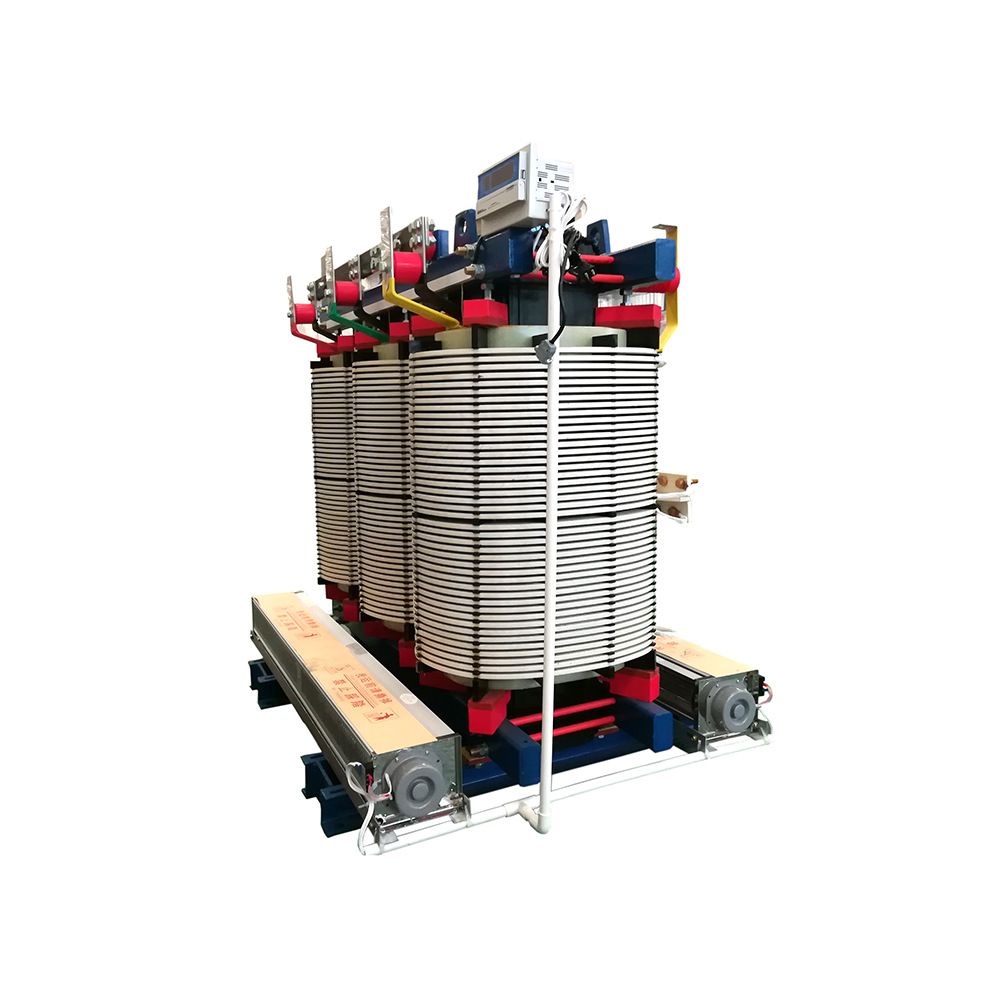

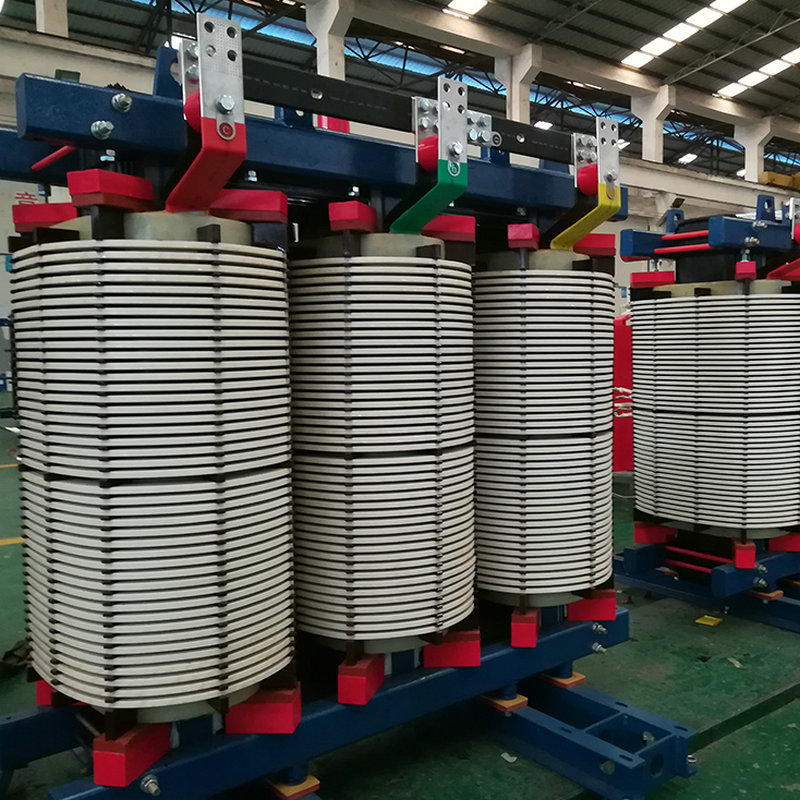

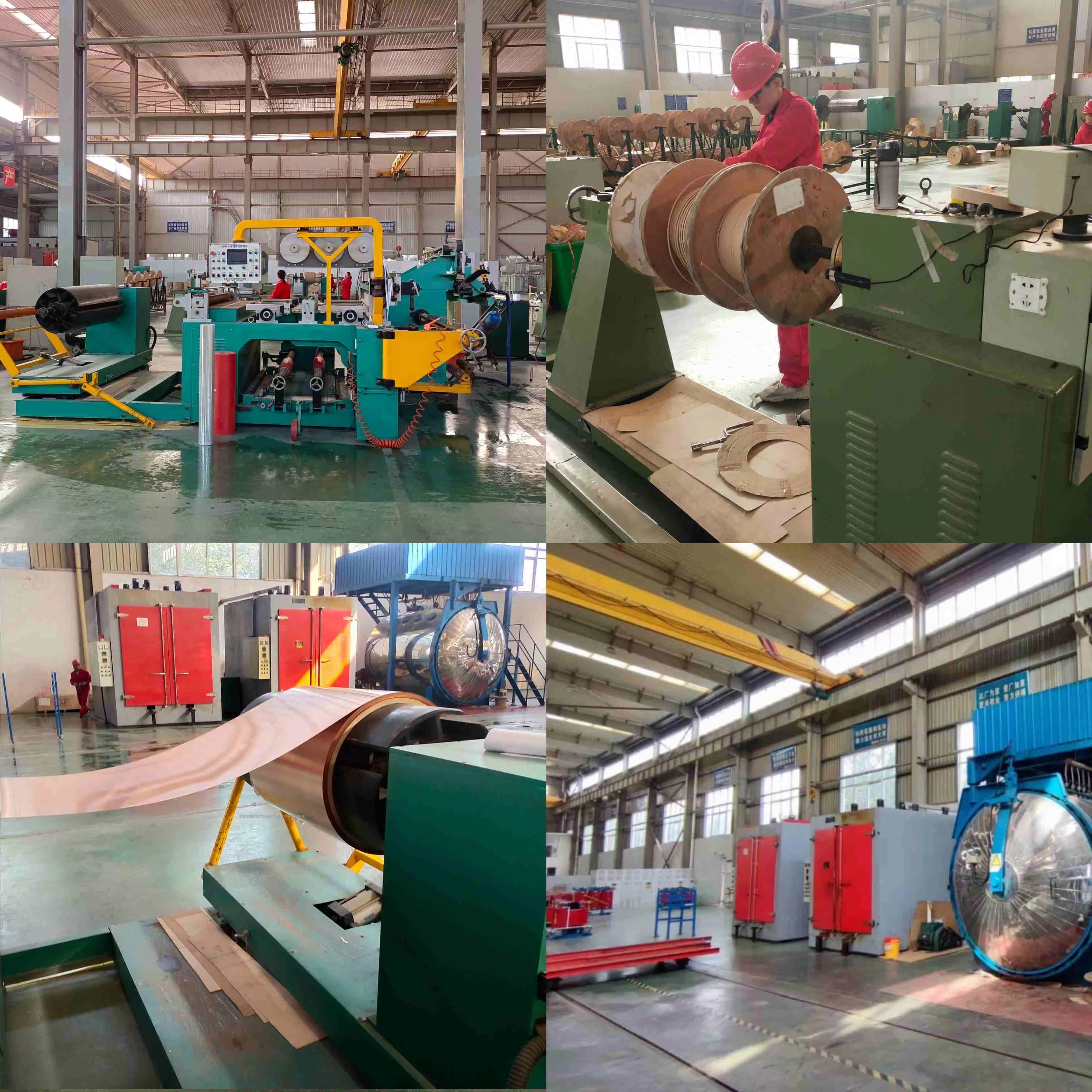

SG10 Series power transformer use NOMEX material and new technology to achieve H-grade insulation, it is reliably used in ambient temperature up to 180℃and the main part of the transformer can sustain up to 220℃.
2.Safety
SG10 and SG11 series power transformer using insulated materials which is flame retardant and moisture-proof, the combustible material is only 10% of the epoxy resin transformer. There’s no poisonous fumes during long time burning at 800℃. SG10 and SG11 series power transformer is mainly applied to high safety requirements, moist and poorly ventilated installation site, such as power station, railway, shipbuilding, chemical industry, metallurgic industry.
3.Reliable
SG10 and SG11 series power transformer using special coil design and technology to achieve moisture proof, mould proof and fame proof. It can sustain high thermal shock and without rimous nor partial discharge.
4.Strong over-load ability
SG10 and SG11 series power transformer can sustain 120% rated capacity. It can longtime running under IP23 without force air cooling.
Max Temperature ( for reference only)
Max Temperature ( for reference only) | | | | |
Temperature grade | Average Temperature rise(℃) | Max ambient temperature(℃) | Max temperature tolerance(℃) | Max Temperature(℃) |
B | 80 | 40 | 10 | 130 |
F | 100 | 40 | 15 | 155 |
H | 125 | 40 | 20 | 185 |
C | 150 | 40 | 30 | 220 |
Technical parameters
Technical parameters | | | | | | | | |
Model | Rated Capacity | No-load cost | On-load cost
(145℃) | No-load current | Sound level | short circuit impedance | Weight | Dimension
(L*W*H) |
|
(kVA) | (W) | (W) | (%) | (LPA)dB | (%) | (kg) | (mm) |
SG10-100/10 | 100 | 400 | 1690 | 1.7 | 65 | 4 | 600 | 930*1100*1150 |
SG10-200/10 | 200 | 620 | 2710 | 1.3 | 67 | 900 | 1000*1100*1360 |
SG10-315/10 | 315 | 880 | 3730 | 1.1 | 69 | 1350 | 1160*1100*1400 |
SG10-400/10 | 400 | 980 | 4280 | 1.1 | 69 | 1510 | 1230*1100*1355 |
SG10-500/10 | 500 | 1160 | 5230 | 1.1 | 70 | 1810 | 1350*1100*1570 |
SG10-630/10 | 630 | 1300 | 6400 | 0.9 | 71 | 6 | 1980 | 1350*1100*1520 |
SG10-800/10 | 800 | 1520 | 7460 | 0.9 | 72 | 2180 | 1490*1200*1530 |
SG10-1000/10 | 1000 | 1770 | 8760 | 0.9 | 72 | 2650 | 1560*1200*1700 |
SG10-1250/10 | 1250 | 2090 | 70370 | 0.9 | 74 | 3150 | 1580*1200*1640 |
SG10-1600/10 | 1600 | 2450 | 12580 | 0.9 | 75 | 3650 | 1650*1200*1860 |
SG10-2000/10 | 2000 | 3050 | 15560 | 0.9 | 77 | 4280 | 1690*1500*2010 |
SG10-2500/10 | 2500 | 3600 | 18450 | 0.9 | 78 | 5210 | 1800*1500*2120 |
Note: All the dimension and weight is for reference only.
