SC(B)10, SC(B)11, SC(B)13
Qianhong/Custom
Model | Rated capacity | Rated voltage | Connection | No-load loss | On-load loss | No-load current | Short circuit impedance | Dimension (L"W"H) | |
HV | LV | 120℃ | |||||||
(kVA) | (kV) | (kV) | (W) | (W) | (%) | (%) | (mm) | ||
SC10-100/10 | 100 | 11 10.5 10 6.6 6.3 6 | 0.4 | Dyn11 Yyno | 400 | 1570 | 1.5 | 4 | 805'680*820 |
SC10-125/10 | 125 | 470 | 1850 | 1.3 | 820'680'855 | ||||
SC10-160/10 | 160 | 540 | 2130 | 1.3 | 820*680*890 | ||||
SC10-200/10 | 200 | 620 | 2530 | 1.1 | 1010*900*990 | ||||
SC10-250/10 | 250 | 720 | 2760 | 1.1 | 1040*900*1050 | ||||
SC10-315/10 | 315 | 880 | 3470 | 1.0 | 1060*900*1180 | ||||
SC10-400/10 | 400 | 970 | 3990 | 1.0 | 1120*1000*1180 | ||||
SC10-500/10 | 500 | 1160 | 4880 | 1.0 | 1150*1000*1220 | ||||
SCB10-630/10 | 630 | 1290 | 5880 | 0.85 | 1160*1000*1280 | ||||
SCB10-630/10 | 630 | 1290 | 5960 | 0.85 | 6 | 1340*1000*1280 | |||
SCB10-800/10 | 800 | 1520 | 6960 | 0.85 | 1390*1000*1290 | ||||
SCB10-1000/10 | 1000 | 1760 | 8130 | 0.85 | 1450*1100*1350 | ||||
SCB10-1250/10 | 1250 | 2080 | 9690 | 0.85 | 1480*1100*1450 | ||||
SCB10-1500/10 | 1500 | 2334 | 11147 | 0.85 | 1510*1100*1590 | ||||
SCB10-1600/10 | 1600 | 2440 | 11730 | 0.85 | 1510*1100*1590 | ||||
SCB10-2000/10 | 2000 | 3050 | 14450 | 0.70 | 1790*1300*1600 | ||||
SCB10-2500/10 | 2500 | 3600 | 17170 | 0.70 | 1830*1300*1900 | ||||
SCB10-3000/10 | 3000 | 4128 | 19606 | 0.65 | 1900x1450x1950 | ||||

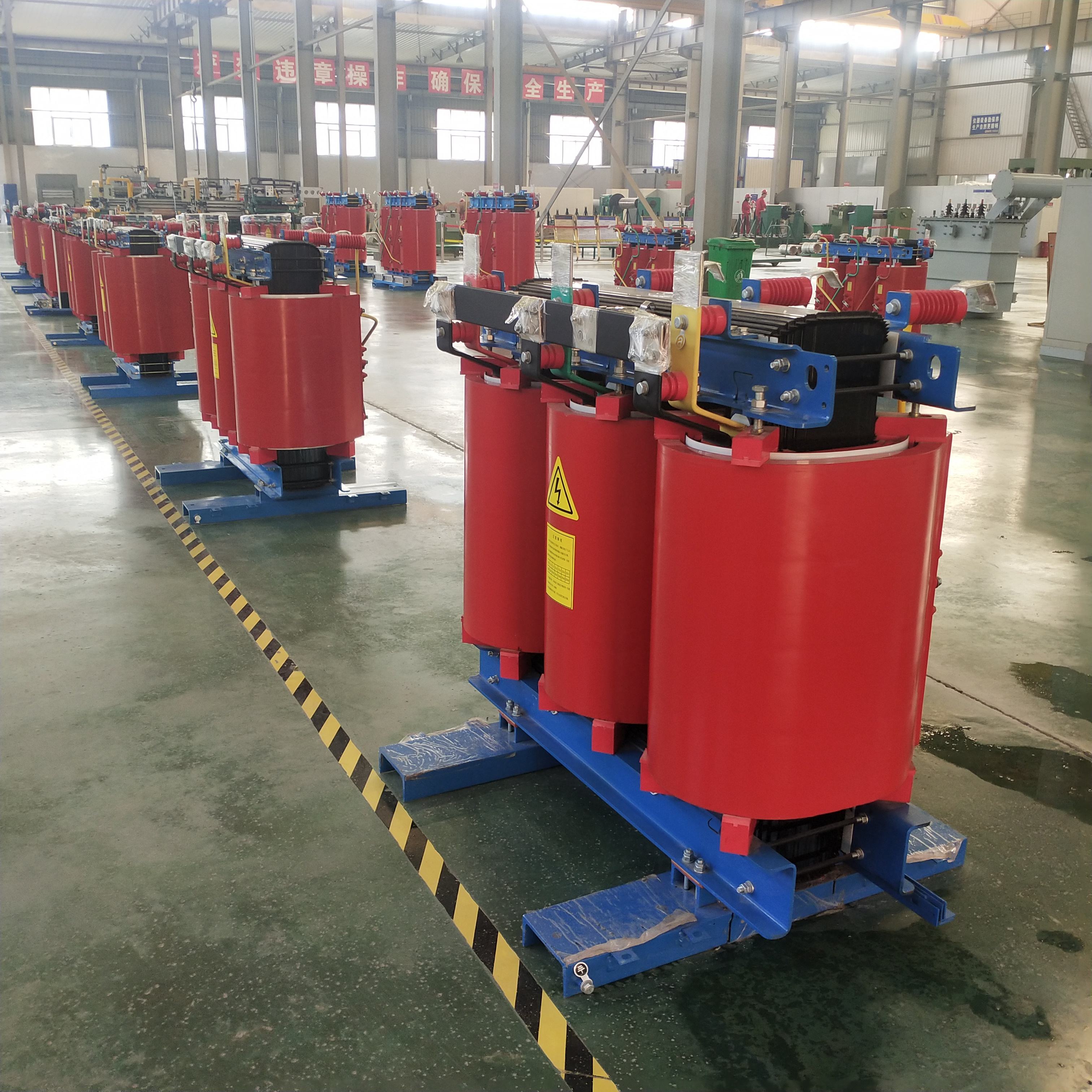

SC(B) SERIES DRY EPOXY RESIN DISTRIBUTION POWER TRANSFORMER

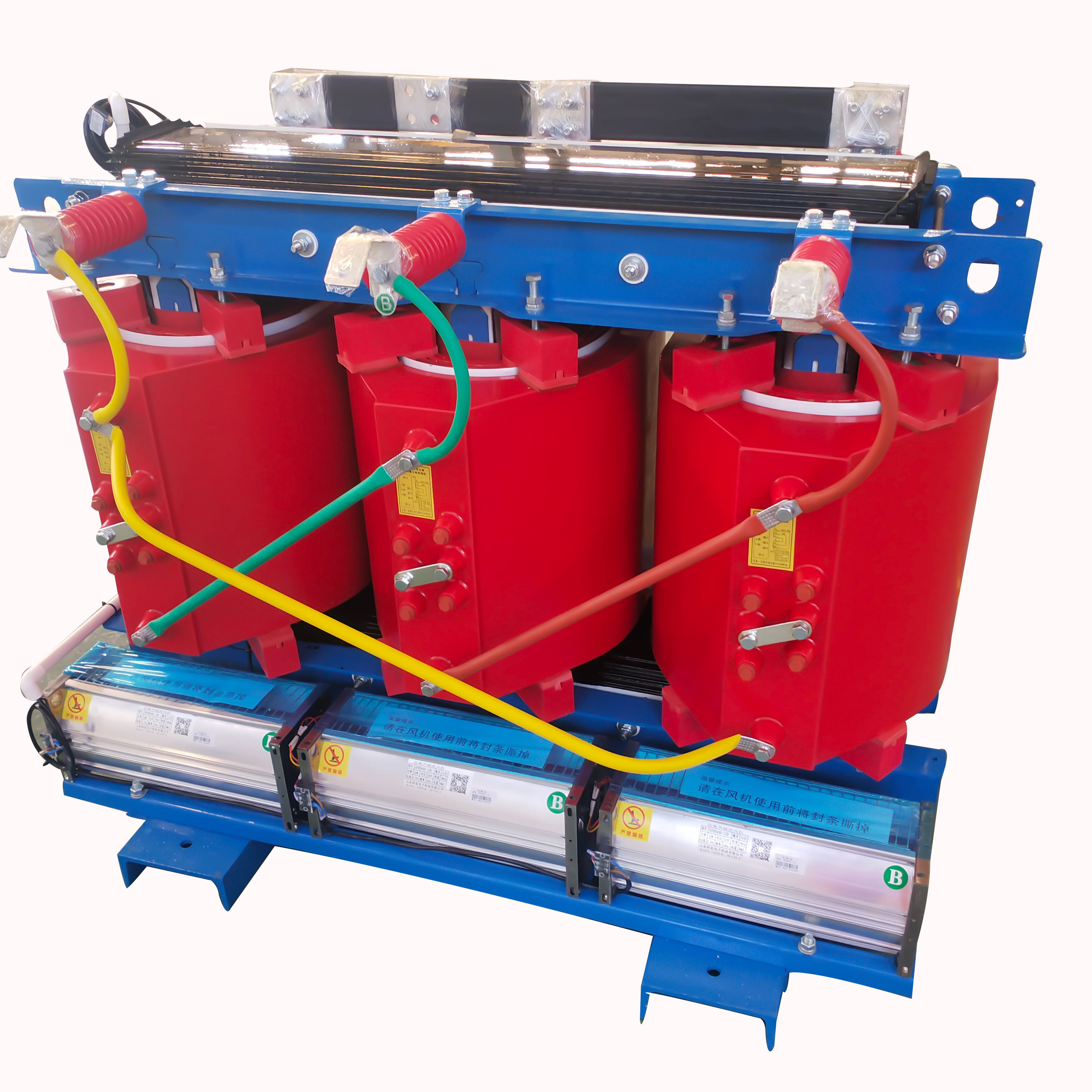

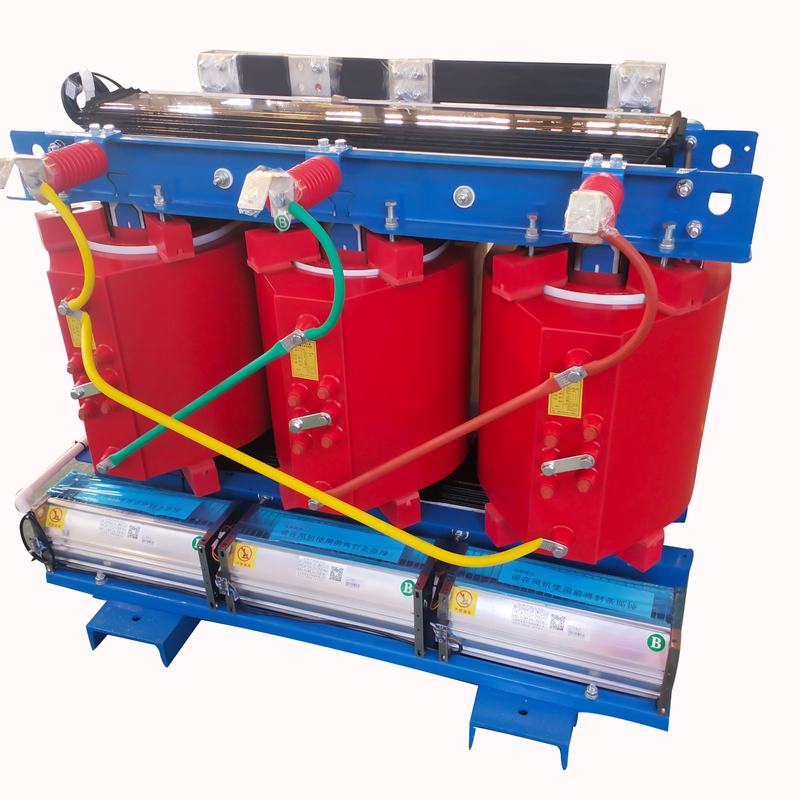

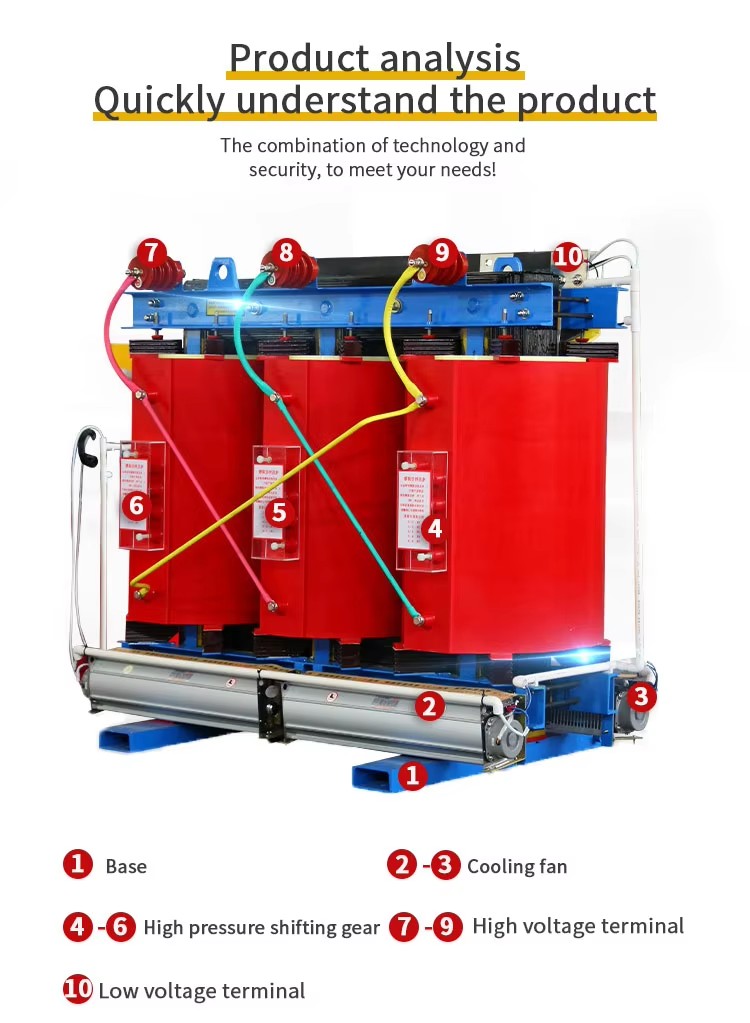

SC(B)10, SC(B)11, SC(B)13 are the typical dry epoxy distribution power transformer, they are fireproof, compact and mainly designed for indoor use, and can be directly installed in the load center.
Application
SC(B) Series DRY EPOXY RESIN DISTRIBUTION POWER TRANSFORMER is widely applied in hotels, high buildings, business centers, residence community, gymnasium, Petrochemical plant, airport, harbor, metro, mine, drilling platform, etc.
Benefits:
Low noisy
Low partial discharge
High mechanical strength and strong short circuit resistance ability;
Strong impact resistance

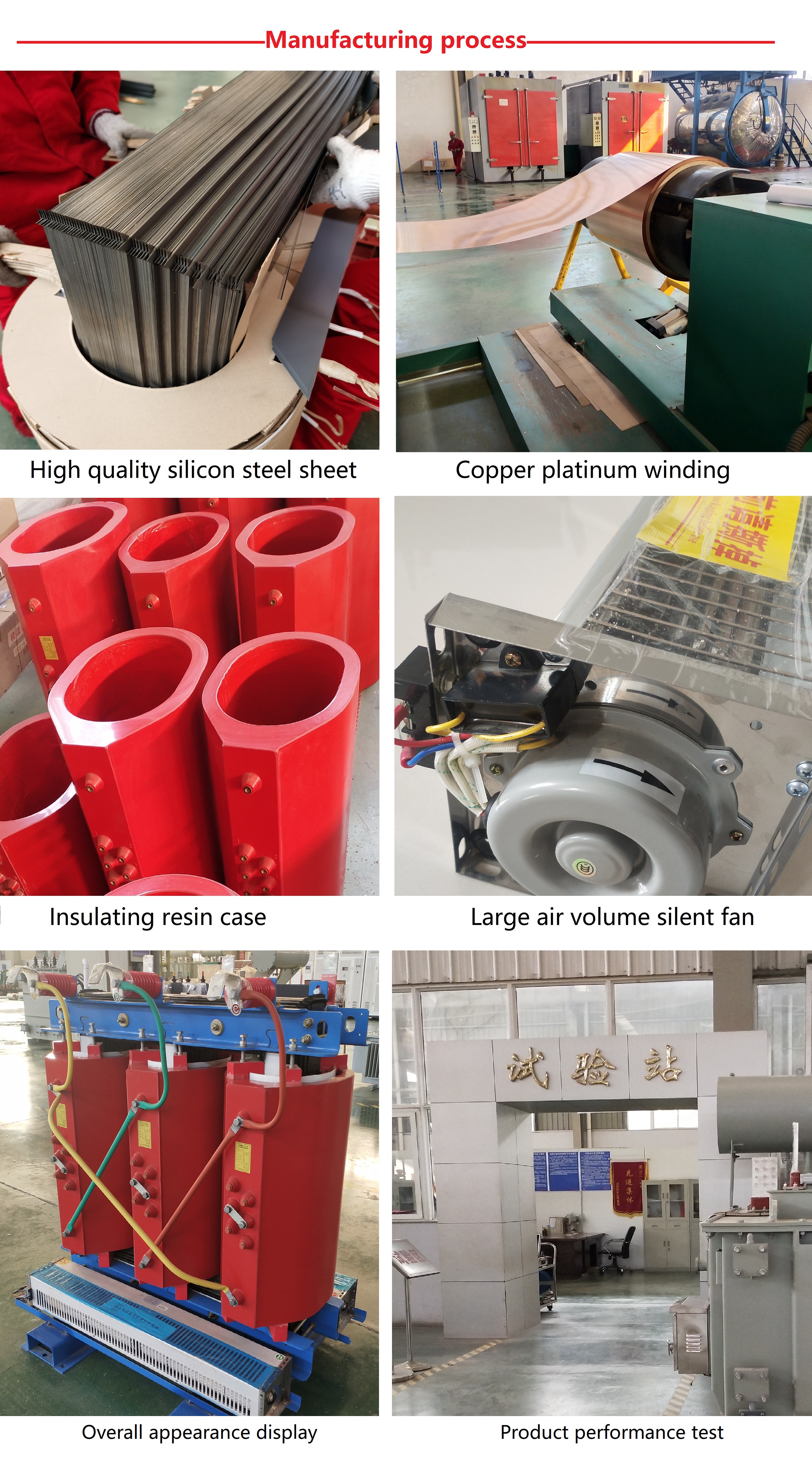

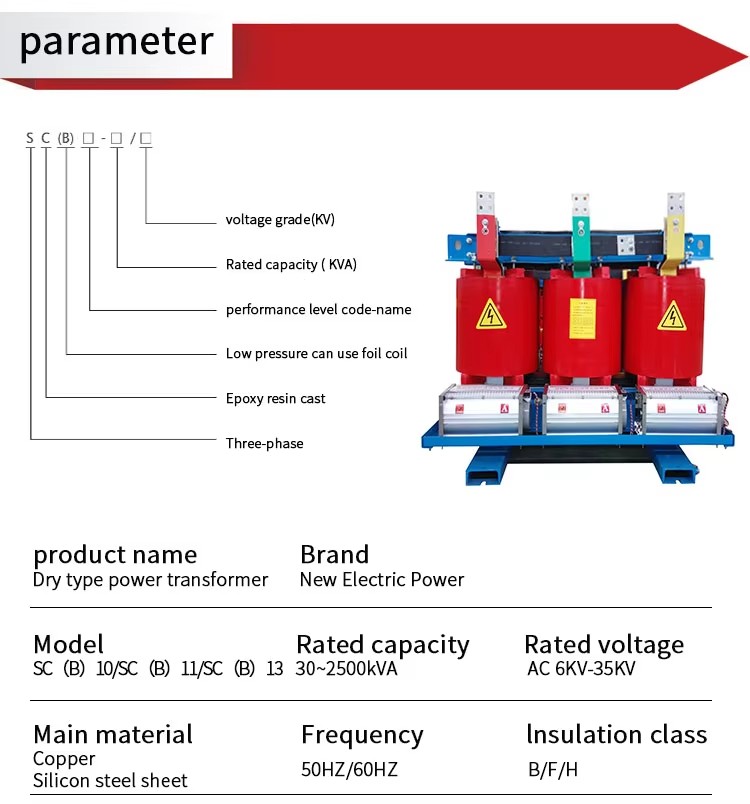

Technical specification
Standard: GB1094.11-2007 GB/T10228-2008 IEC60726
Capacity:50~2500KVA
Voltage: 10KV, 35KV
Tapping range: ±2x2.5% or ±5%
Voltage regulating: No excitation or on load voltage regulation
Frequency: 50Hz or 60Hz
Connection: Dyn11 or Yyn0
Insulation level: LI75AC35/AC5
Partial discharge: ≦10PC
Insulation grade： F
Max temperature rise: 100K
Cooling way: AN or AF
Protection class: IP00, IP20(indoor), IP23(outdoor)
Working Environment: ambient temperature ≦40℃,altitude≦1000M(Please contact us if the installation is beyond the normal use)
