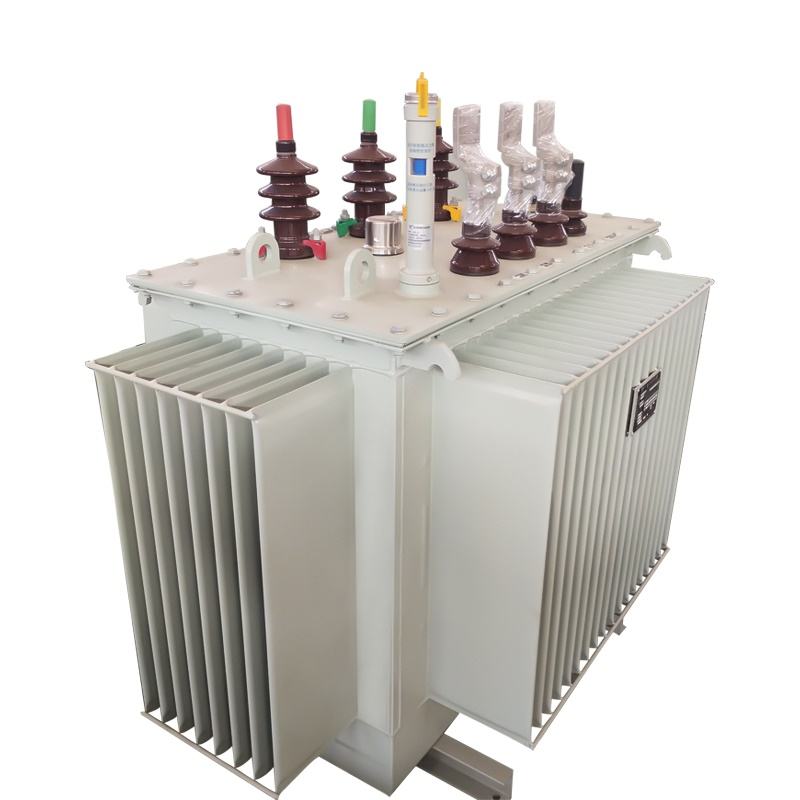

35kV-S11, S13 Series Oil Immersed Transformer

S11-M SERIES 10kV OIL IMMERSED SEALED CURRENT TRANSFORMER

Quantity:
Availability:





Inquire Add to Basket

Model:
S11, S13 Series Oil Immersed Transformer
Brand:
Qianhong/Custom

Oil Immersed Transformer Transformer Transformer Manufacture Factory Sales Manufacture Direct Distribution Transformer 3 Phase Step Down Power Transformer Step up Transformer High Voltage Transformer

Product Description

Model	Rated Capacity	Rated Voltage			Conne ction	No- load cost	On-load cost	No- load curren t	Short- circuit imped ance	Weight			Gauge Crosswi se Length	Dimension (LWH)
	Rated Capacity	HV	Tapping range	LV	Conne ction	No- load cost	On-load cost	No- load curren t	Short- circuit imped ance	Transfor mer	Oil	Total	Gauge Crosswi se Length	Dimension (LWH)
	(kVA)	(kV)	H.V	(kV)		(W)	(W)	(%)	(%)	(kg)	(kg)	(kg)	(mm)	(mm)
SZ11-200/10	200	6 6.3 10 10.5 11	±5% Or ±2*2.5%	0.4	YynO or Dyn11	385	2910	1.6	4.0	645	185	980	550	13208101300
SZ11-250/10	250					450	3420	1.2		775	225	1180	550	14008501270
SZ11-315/10	315					540	4105	1.1		100	260	1410	550	14708701380
SZ11-400/10	400					640	4960	1.0		1040	310	1610	660	15709301400
SZ11-500/10	500					770	5900	1.0		1195	320	1850	660	16209401450
S211-630/10	630					960	7270	0.9	4.5	1480	440	2290	660	170010001510
S211-900/10	800					1120	9090	0.8		1560	450	2500	820	183010201580
SZ11-1000/10	1000					1360	10430	0.7		1760	520	2980	820	193011401640
SZ11-1250/10	1250					1560	12400	0.6		2030	660	3540	820	203018001680
SZ11-1600/10	1600					1920	14700	0.6		2580	740	4310	820	217012801740
SZ11-2000/10	2000					2050	17500	0.6	5.5	3300	1200	5500	1070	248012602220
SZ11-2500/10	2500					2500	21000	0.6	5.5	3900	1310	6630	1070	253014202400

S11-M SERIES 10kV OIL IMMERSED SEALED CURRENT TRANSFORMER

Standard

GB1094.1, .2-2013

GB/T6451-2008

GB1094.3-2003

GB1094.5-2008

Benefits:

S11-M 10KV Oil immersed sealed current transformer is compact and with strong over-load ability, low temperature rise and noise. It can save about 30% no-load loss than S9 series Oil immersed sealed current transformer, and save about 40%-80% no-load current.

It’s an environment-friendly transformer with low no-load loss, no-load current and noise;
No oil storage box to save space;
Whole sealed with vacuum oil filling, high stability of insulation;
Adopts the corrugations on the oil tank as its heat-radiation parts, corrugations can expand or contract accord to the change of oil volume
Fully sealed structure, maintenance free;

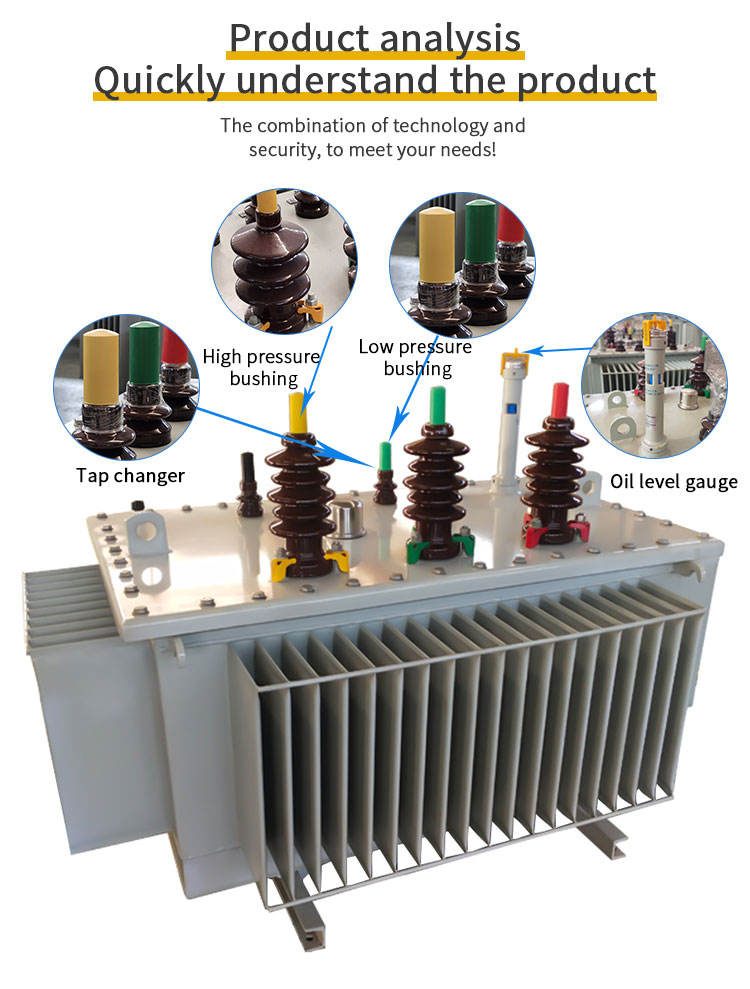

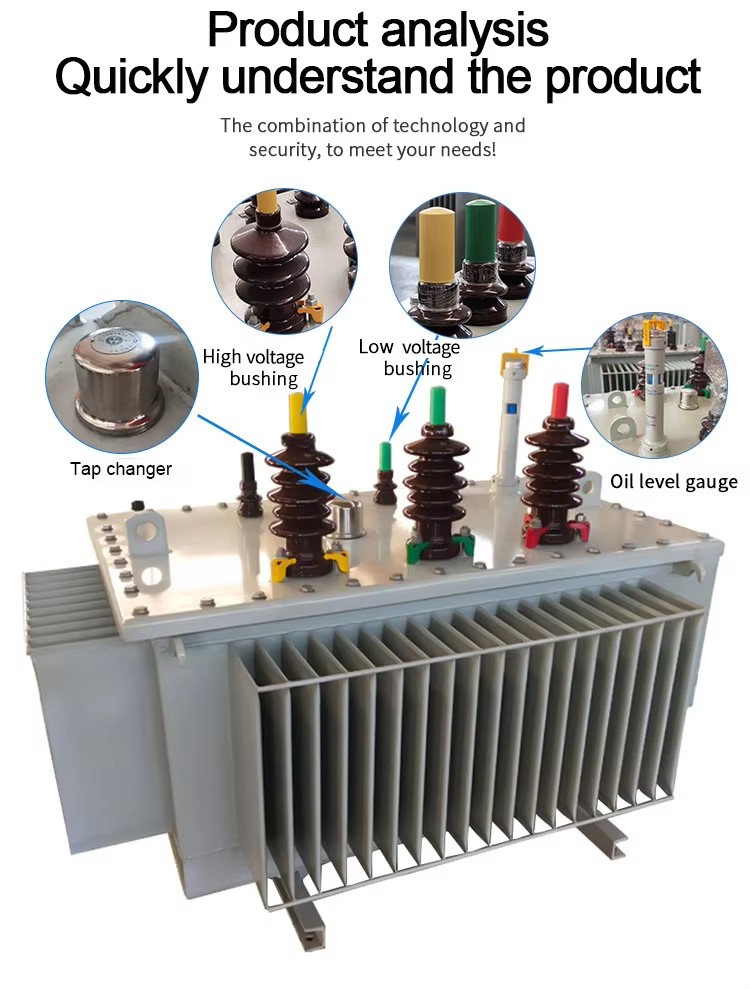

With oil level gauge to ensure the safety running.

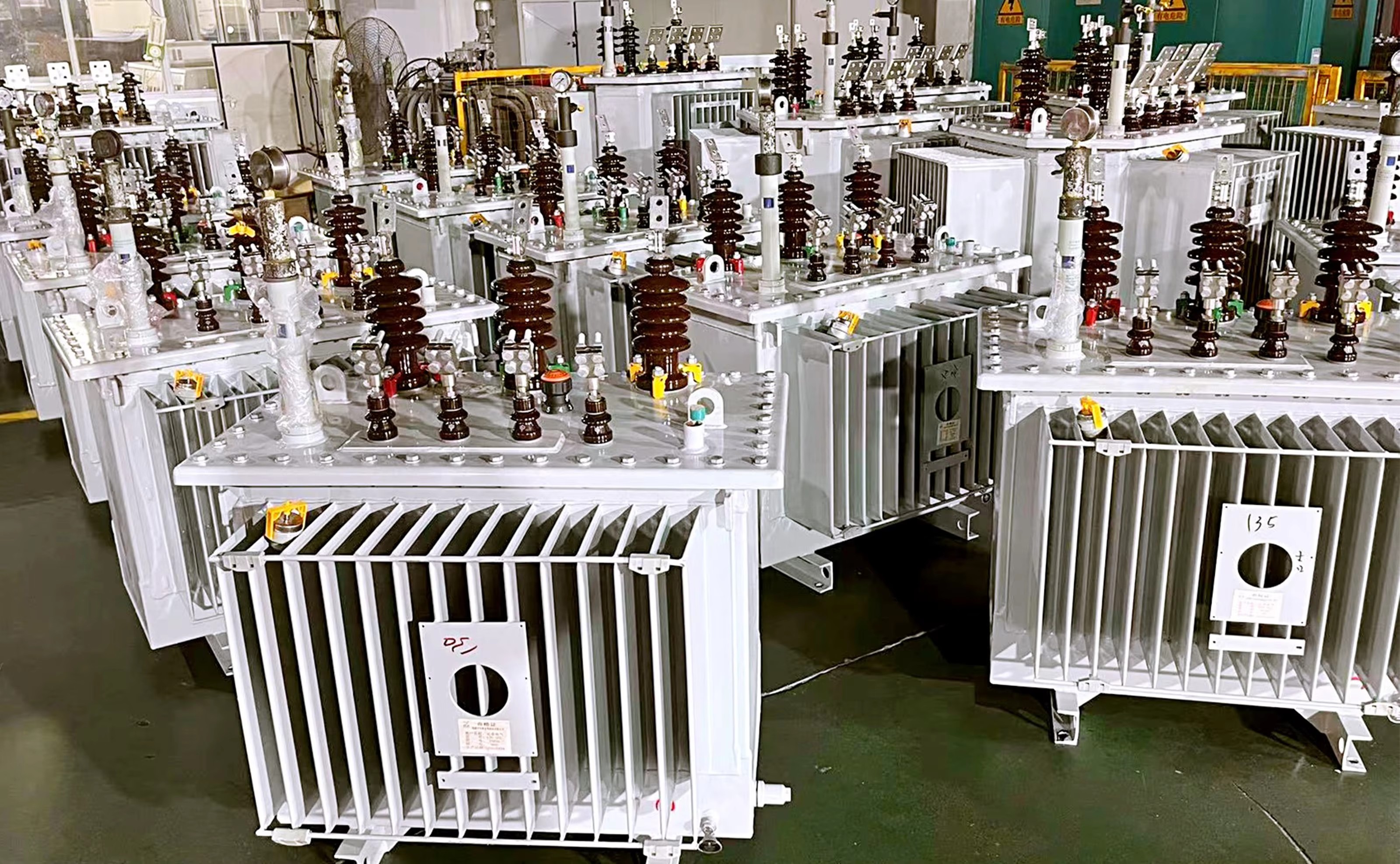

Ha77af85d8e6349e499a74edf74004fe8W
