Are There Too Many Types Switchgear To Distinguish?

Are there too many types switchgear to distinguish? This introduction will helps you.

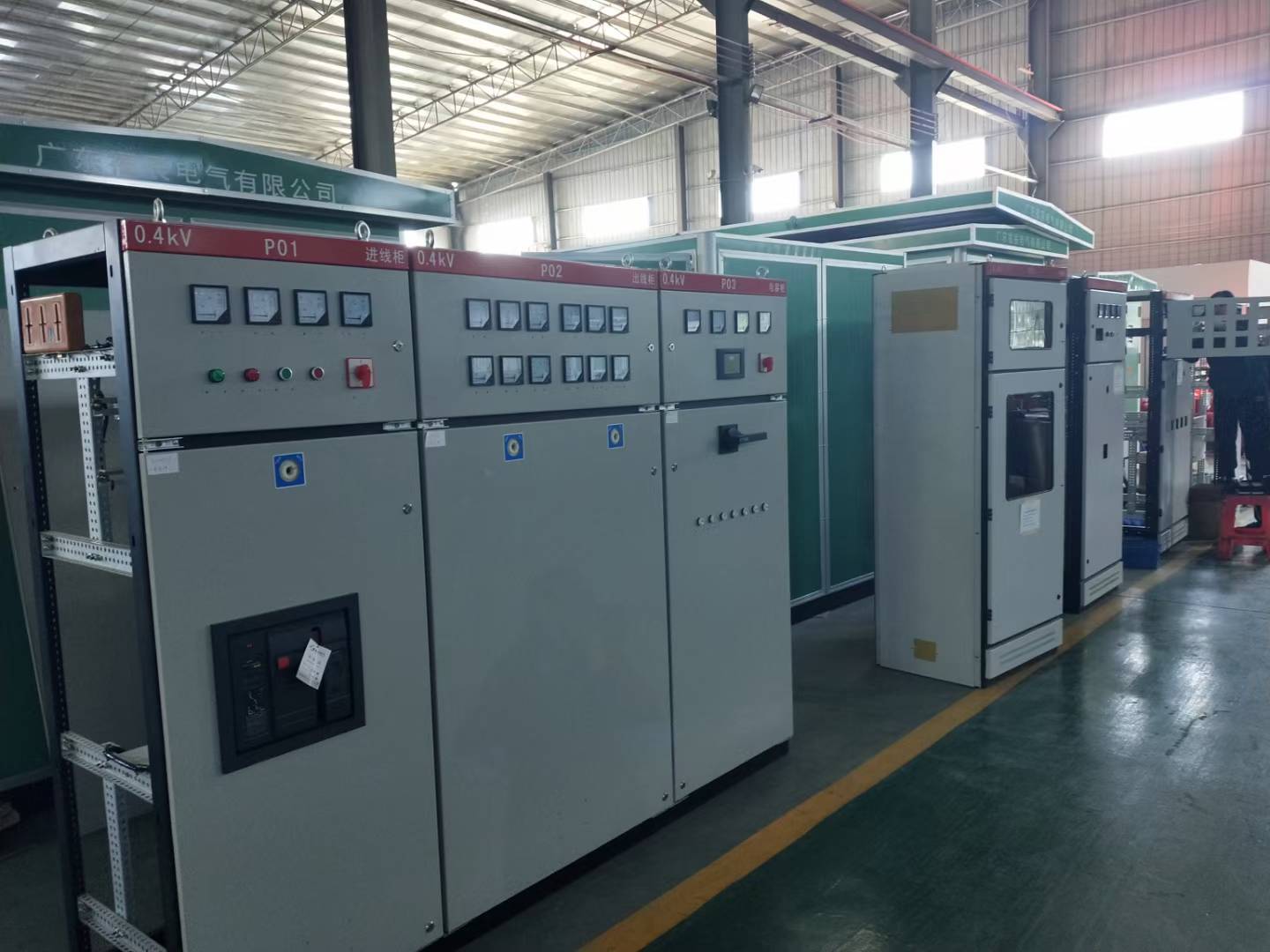

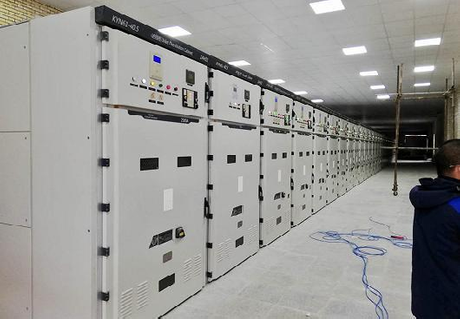

According to voltage levels, it’s divided into high voltage and low voltage cabinets.

According to the installation method of circuit breakers, it’s divided into movable and fixed types.

According to their functions, they can be divided into 7 types: metering cabinet, outgoing cabinet, busbar connection cabinet, PT cabinet, isolation cabinet, capacitor cabinet, and incoming cabinet connected to the power grid.

Among them, the capacitor cabinet needs special attention. After a power outage, it needs to be discharged for a period of time. Do not touch and do not close immediately.
